HT3 - motorbike CDI ignition coil

Universal CDI motorbike ignition coil
1 Year warranty

Primary ignition coil resistance: 0.3 Ohms
Secondary ignition coil resistance: 2350 Ohms

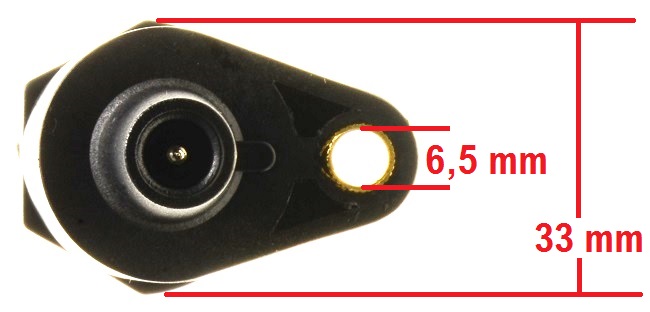

Hole Spacing: 1 hole

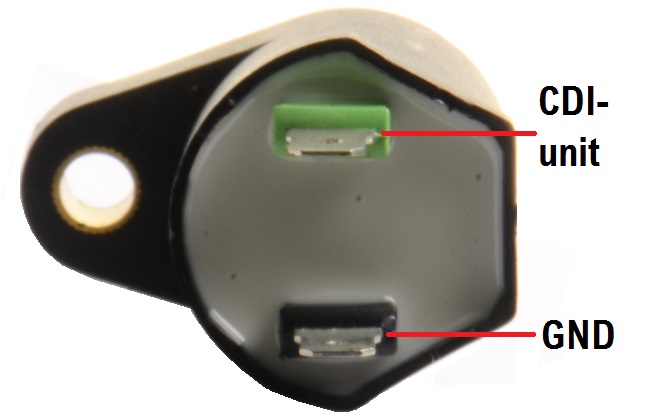

Terminals: 2

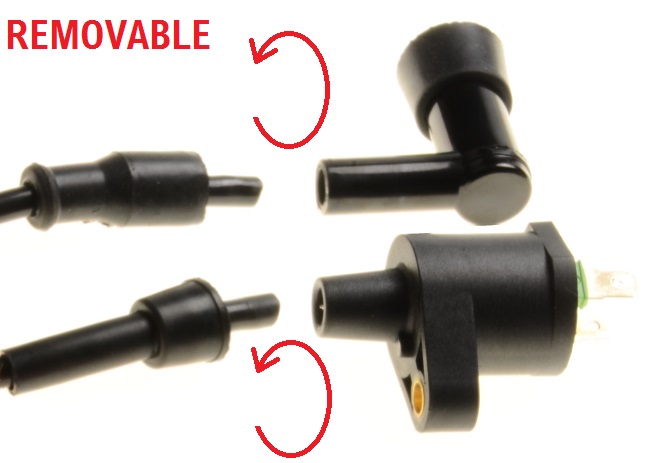

Removable spark plug lead
5k Ohm 90 Degrees spark plug cap (removable)

1 Year warranty

Among other things for:
Honda XL500R ignition coil 1982
Honda XL500S ignition coil 1979 1980 1981
Honda XR500R ignition coil 1983 1984
Honda XL600R ignition coil 1983 1984 1985 1986 1987
Honda XL 600 V Transalp 1991-1994 (XL600V PD06) Ignition Coil (MP02)
Honda XRV650 XRV 650 Africa Twin RD03 V-twin ignition coil 1988 1989 1990
Honda XRV750 XRV 750 Africa Twin RD04 V-twin ignition coil 1990 1991 1992
Honda XRV750 XRV 750 Africa Twin RD07 V-twin ignition coil 1993 1994 1995-2003
Yamaha XT600E ignition coil 1990 1991 1992 1993 1994 1995


We manufacture a wide range of electrical components to fit new and older Japanese and European motorcycles.
All products are made from high quality materials which have proven to be very reliable.
Our products offer higher power output compared with OEM parts, for a better price.

Number on CDI-ignition coil:
30550-MM9-000
30550MM9000
30540-MS8-000
30540MS8000
CDI-IG51 / 713826
TEC Japan
MP02

Team-Carmo
